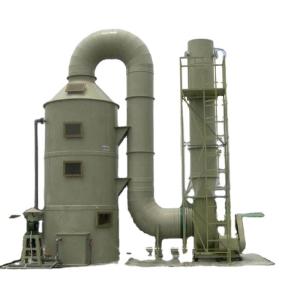

4mm-15mm Thickness Waste Gas Treatment Flue Gas Acid Fume Wet Scrubber Purification Tower

Condition : New

Applicable Industries : Manufacturing Plant, HCL plant, shrimp sauce, chicken farm, rubber plant, odor remove

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Core Components : Pump, Motor, Shell, Packing material

Place of Origin : Hebei, China

Brand Name : YITE

Purify Efficiency : with water 80%, add solution >90%

Warranty : 1 Year

Material : polypropylene

Product Name : wet scrubber, spraying tower, purification tower

Power of water pump : 0.75 Kw~7.5 Kw

Air flow : 3000~20000 CMH

Diameter : 600mm~2000mm

Height : 1500mm~ 7500mm

Thickness : 4mm~15mm

After Warranty Service : Video technical support, Online support, Spare parts

Local Service Location : None

After-sales Service Provided : Video technical support, Free spare parts, Online support

Packaging Details : 1.Main part of Spray tower are loaded into container .
2.Spare parts are packed by wooden box.
3. necessary protection for insulating layer.

Port : Tianjin port

Supply Ability : 500 Piece/Pieces per Year

Price : $1,000.00 - $4,500.00/pieces

MOQ : 1

Contact Now

High quality waste gas treatment wet scrubber dust collector

This products can be customized. Such as the size, material, packing material, motor voltage, pipeline. It will be helpful if you can provide the information below:


1.The waste gas information. Such as the composition and concentration, the temperature when it enters the wet scrubber. If you have the gas test report, that is better. These will help us to determine the material.

2. the air volume. If you wanna purify the whole room, tell me the L*W*H. If you wanna collect the waste gas/ fume from several points, tell me the points L*W.
3. The voltage you need. Single-phase and three-phase are both needed.

4. Some pictures and videos of the workshop and machine.

5. If you need us provde the pipeline, show me the drawing or machine layout.

With above information we can make design and quote exact price immediately.

4mm-15mm Thickness Waste Gas Treatment Flue Gas Acid Fume Wet Scrubber Purification Tower

The exhaust gas is introduced into the purification tower by the wind pipe. Through the packing layer, the exhaust gas and the absorption liquid are fully exposed to the absorption and neutralization reaction of the gas-liquid two phase. After the exhaust gas is purified, the fan is discharged into the atmosphere by the dehydration of the mist removal plate and the mist eliminator. The absorption liquid is pressurized by the pump at the bottom of the tower and then sprayed down at the top of the tower. Finally, it is recycled to the bottom of the tower for recycling. The purified acid mist exhaust gas is lower than the national emission standard.

4mm-15mm Thickness Waste Gas Treatment Flue Gas Acid Fume Wet Scrubber Purification Tower

4mm-15mm Thickness Waste Gas Treatment Flue Gas Acid Fume Wet Scrubber Purification Tower

Product Description

material classification:

4mm-15mm Thickness Waste Gas Treatment Flue Gas Acid Fume Wet Scrubber Purification Tower

Specification sheet:

model Air volume(m³/h) tower size(mm) water tank size(mm) thickness(mm) pump power(kw) tuyere size(mm)
YT-04PL600 1500 φ600*2800 500*400*450 PP-A/6 0.75 φ200
YT-04PL650 2000 φ650*3000 500*400*450 PP-A/6 0.75 φ250
YT-04PL800 3000 φ800*3600 500*400*450 PP-A/6 1.5 φ315
YT-04PL900 4000 φ900*3600 500*400*450 PP-A/6 1.5 φ315
YT-04PL1000 5000 φ1000*3600 600*400*450 PP-A/6 1.5 φ400
YT-04PL1100 6500 φ1100*3800 600*400*450 PP-A/8 2.2 φ400
YT-04PL1200 8000 φ1200*4200 600*400*450 PP-A/8 2.2 φ450
YT-04PL1400 10000 φ1400*4200 600*400*450 PP-A/8 2.2 φ500
YT-04PL1500 13000 φ1500*4200 600*400*450 PP-A/8 3 φ500
YT-04PL1650 15000 φ1650*4200 600*500*450 PP-A/8 3 φ600
YT-04PL1800 18000 φ1800*4500 600*500*450 PP-A/10 5.5 φ650
YT-04PL2000 20000 φ2000*4500 700*500*500 PP-A/10 5.5 φ700
YT-04PL2200 22000 φ2200*4500 800*600*500 PP-A/10 7.5 φ800
YT-04PL2400 25000 φ2400*5000 1000*600*500 PP-A/10 7.5 φ800
YT-04PL2600 30000 φ2600*5000 1000*600*500 PP-A/10 7.5 φ1000
YT-04PL2800 35000 φ2800*5000 1200*600*500 PP-A/10 11 φ1000
YT-04PL3000 40000 φ3000*5000 1200*600*500 PP-A/12 11 φ1000
YT-04PL3300 45000 φ3300*5500 1500*600*500 PP-A/12 15 φ1200
YT-04PL3600 50000 φ3600*6000 1500*600*500 PP-A/12 15 φ1200

Application pictures:

4mm-15mm Thickness Waste Gas Treatment Flue Gas Acid Fume Wet Scrubber Purification Tower

Adventages:

1.The efficiency of dust removal and desulfurization is high and the efficiency of desulfurization can reach 85% when using alkaline washing water.
2.The wet scrubber dust collector is small and easy to install.
3.Low water consumption and low power consumption.
4.The equipment is reliable, simple and convenient to maintain.
